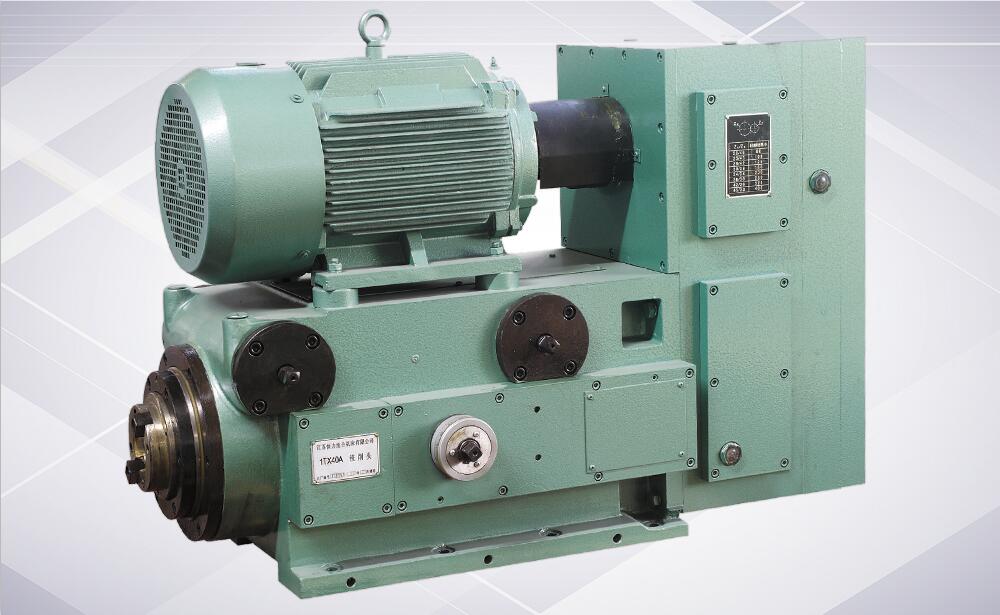

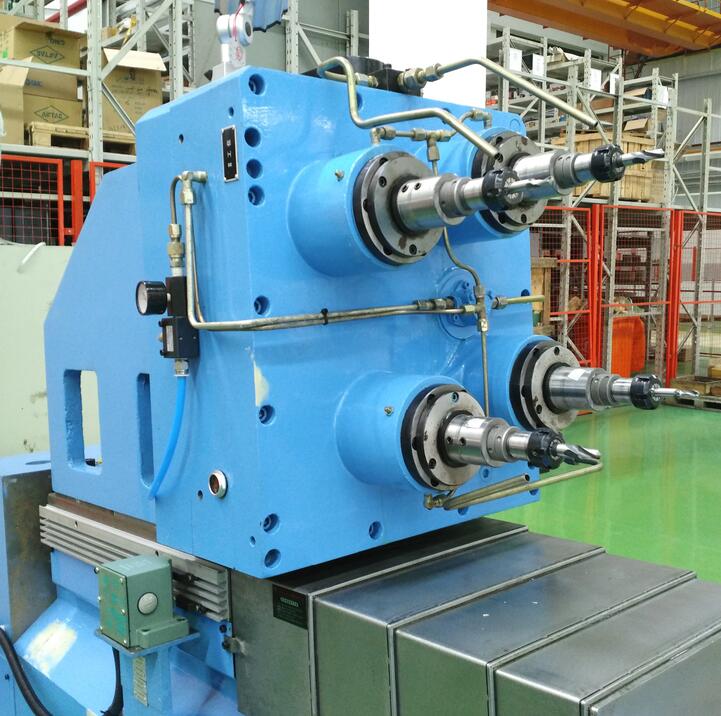

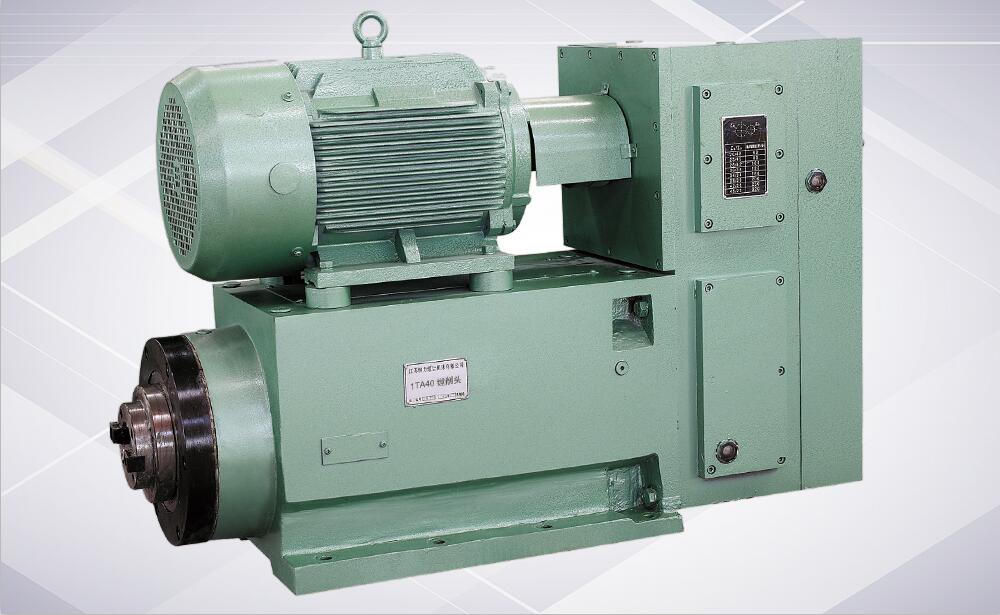

1TX Series Milling Head

1TX series milling head is the first new milling head developed and produced by our company. The milling head has large power, good rigidity, stable cutting, high precision, and easy operation and adjustment. The milling head is available in three grades: ordinary, precision, and high-precision. It can be used with three types of transmissions: 1NG belt drive, 1NGb overhead gear drive, and 1NGc rear gear drive. 1TX series milling heads can be derived from twin or multi-axis milling heads. Electronic display ruler is to choose accessories, not suitable for general applications. Please specify when ordering.

產品介紹

The main parameters	Specification	1TX20A		1TX25		1TX32		1TX40		1TX50		XD10
Motor Power	kw	1.1，1.5		2.2，3		3，4，5.5		7.5，11		15，18.5，22		7.5，11，15
Motor speed	rpm	1400		1420		960		970		970		970
Cutter diameter	mm	ф80-ф200		ф100-ф250		ф125-ф315		ф160-ф400		ф200-ф500		ф160-ф400
Supporting transmission and spindle speed	rpm	1NG20	100-500	1NG25	80-400	1NG32	80-400	1NG40	63-320	1NG50	63-250	High speed group 95-665
			200-1000		125-630		125-630		100-500		80-400
		-	-	-	-	1NG32	540-1080	1NG40	630-1250	1NG50	320-1000	Low speed group 40-272
							800-1600
Spindle end number		NO.40(ф88.882)		NO.40(ф88.882)		NO.50(ф128.57)		NO.50(ф128.57)		NO.60(ф221.44)		NO.50(ф128.57)
Spindle slide diameter	mm	150		160		190		220		265		220
pindle sleeve movement	mm	63		63		80		80		100		70
Spindle front bearing shaft diameter	mm	75		80		90		110		140		110
Overall weight	kg	157		305		570		1160 1225，980		2150，2300 1860		1030

Contact size

Type		B	B1	L	L1	L2	L3	L4	H	H1	H2	D	A*C
1TX20A	1NG_c^b20	200	170	320	125	132	70	260	100	471	225	ф13.5	100*2
1TX25	1NG_c^b25	250	220	400	125	150	70	260	125	525	265	ф14	100*3
1TX32	1NG_c^b32	320	280	500	160	160	80	380	160	610	325	ф14	100*4
1TX40	1NG_c^b40	400	355	630	160	220	135	520	200	745	405	ф18	175*3
1TX40	1NG40	400	355	630	160	25	520	425	200	850	405	ф18	175*3
1TX50	1NG_c^b50	500	450	800	200	275	140	668	250	918	495	ф18	150*5
1TX50	1NG50	500	450	800	200	320	?25	668	250	945	495	ф18	150*5
?1TX63	? 1NG_c^b63	?630	580	1000	200	?320	?140	?686	?315	?1088	?630	ф18	?-----
